SKU:31323960

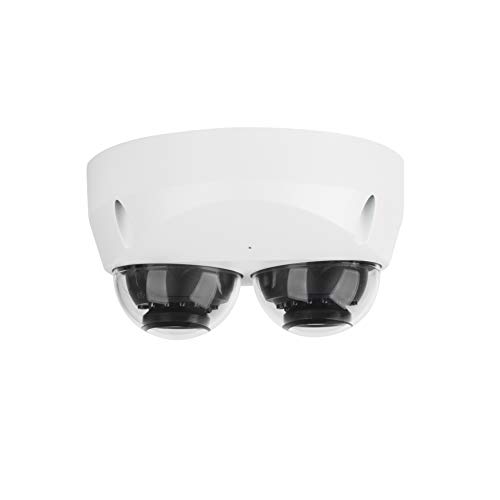

EmpireTech 2×4MP Full-color Duo Splicing IR IP Camera IPC-E541F-E2-AS Functions Intelligent monitoring: Intrusion, tripwire, fast moving (the threefunctions support the classification and accurate detection of vehicleand human); abandoned object, missing object, loitering detection,people gathering, and parking detection. Face detection: Track, snapshot, snapshot optimization, optimal facesnapshot upload, face enhancement, and face exposure. People counting: Queue management, people counting in area,entered/exited people counting, and generating and exporting report(day/month/year). Dual-channel intelligence can be enabled at the same time andindependent of each other. Supports dual-channel images previewed in the first channel, savinglicense costs. Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SDcard; built-in MIC. Smart Event SMD 3.0 : With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.IVS (Perimeter Protection) : With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.People Counting : With deep learning algorithm, People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.Face Detection : Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.Smart Search :Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos . Image Sensor 1/2.7" CMOS Max. Resolution 2560 (H) × 1440 (V) ROM /RAM 128 MB /1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.005 Lux @ F1.6 (Color,30 IRE) ; 0.0005 Lux @ F1.6 (B/W,30 IRE) ; 0 lux (Illuminator on) S/N Ratio > 56 dB Illumination Distance 30 m (98.43 ft) (IR) Illuminator On/Off Control Auto Illuminator Number 16 (IR LED) Built-in MIC Yes Audio PCM; G.711a; G.711Mu; G.726; G.723 Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 2 channels in: 5mA 3V–5 VDC Alarm Output 2 channels out: 300mA 12 VDC Lens 2.8 mm; 3.6 mm Fixed-focal Lens Optional Lens Mount M12 Max. Aperture F1.6 Field of View 2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114° / 3.6 mm: Horizontal: 78°; Vertical: 41°; Diagonal: 94° Iris Control Fixed Close Focus Distance 2.8 mm: 1.1 m (3.61 ft) / 3.6 mm: 1.7 m (5.58 ft) DORI Distance Lens -------------- Detect ----------------- Observe ----------------- Recognize ----------------- Identify . 2.8mm --------- 63.6m(208.66ft) ------- 25.4m(83.33ft) ------- 12.7m(41.67ft) -------------- 6.4m (21.00 ft) . 3.6mm --------- 85.4m(280.18ft) ------- 34.2m(112.20ft) ------- 7.1m(56.10ft) ------------ 8.5m(27.89ft) Network Port RJ-45 (10/100 Base-T) Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP User/Host 20 (Total bandwidth: 64 M) Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS Browser IE: IE8 and later ; Chrome ; Firefox ; Safari: 12 and later Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ AI Coding AI H.265; AI H.264 Video Frame Rate Main stream: 2560 × 1440 @(1–25/30 fps ) ; sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) ; third stream: 1920 × 1080 @ (1–25/30 fps) Stream Capability 3 streams Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–8192 kbps/ H.265: 32 kbps–8192 kbps Day/Night Auto(ICR)/Color/B/W White Balance Auto; natural; street lamp; outdoor; manual; regional custom Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Rotation 0°/90°/180°/270° Privacy Masking 8 areas Support BLC /HLC /WDR(120 dB)/Scene Self-adaptation (SSA) /Gain Control(Auto)/3D NR /Smart Illumination/Defog / Mirror Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; security exception. Installation Dimensions Casing :Metal Product Dimensions : 66.2 mm × Φ122.0 mm (2.61" × Φ4.80") Net Weight : 0.52 kg (1.15 lb)Gross Weight : 0.67 kg (1.48 lb)Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F) Operating Humidity : ≤ 95%Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F)Protection : IP67; IK10 SD Card Slot and Hard Reset Button SD card slot is available on select models.Disconnect the power before installing or removing the SD card.Do not open the cover for a long time to avoid spray in cameras.Press the reset button for 10 seconds to reset the device.Please do this when the camera is powered on . Adjusting Lens Angle Open the cover to manually adjust to the desired Angle. Installation Method General Power Power Supply : 12 VDC/PoEPower Consumption : Basic: 3.1 W (12 VDC); 4 W (PoE)Max. (H.265 + IR on + intelligence+ WDR): 6.6 W (12 VDC); 8 W (PoE) Optional Accessories（Bracket needs to be purchased separately）： PFB203W Wall Mount BracketPFA152-E Pole Mount BracketPFA137 Junction BoxLR1002-1ET+1EC Single-port Long Reach Ethernet over Coax ExtenderPFA106 Mount AdapterPFB220C Celling Mount Bracket IPC-Color4K-B180 IPC-Color4K-T180 PFB203W PFA152-E PFA137 LR1002-1ET/LR1002-1EC Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 6 4.2 out of 5 stars 32 4.9 out of 5 stars 40 4.3 out of 5 stars 9 4.7 out of 5 stars 6 4.4 out of 5 stars 18 Price $269.99$269.99 $249.99$249.99 $19.99$19.99 $19.99$19.99 $14.99$14.99 $69.99$69.99 Type Full-color Duo Splicing Camera Full-color Duo Splicing Camera Wall Mount Bracket Pole Mount Bracket Junction Box Ethernet over Coax Extender Pixel 2×4MP 2×4MP no data no data no data no data Image Sensor Dual 1/1.8" CMOS Dual 1/1.8" CMOS no data no data no data no data Illuminator 4 (Warm light) 4 (Warm light) no data no data no data no data Lens 3.6mm Fixed-focal Lens 3.6mm Fixed-focal Lens no data no data no data no data Field of View H: 180°±10° ; V: 48° H: 180°±10° ; V: 48° no data no data no data no data Smart AI EPTZ, SMD 3.0,IVS (Perimeter Protection),Heat Map,Smart Object Detection,People Counting,Alarm Event. EPTZ, SMD 3.0,IVS (Perimeter Protection),Heat Map,Smart Object Detection,People Counting,Alarm Event. no data no data no data no data Audio Built-in Mic and Speaker, Two-Way Talk. Built-in Mic and Speaker, Two-Way Talk. no data no data no data no data Protection IP67 IP67 no data no data no data no data EPTZ EPTZ: Enlarge and track the targets of intelligent alarms. EPTZ: Enlarge and track the targets of intelligent alarms. no data no data no data no data
2 × 4 MP 1/2.7" CMOS image sensor, low luminance, and high definition image. Starliht Dual Lens, good for corridor.
Smart AIIVS (Perimeter Protection),SMD 3.0 ,Face Detection( track, snapshot) ,People CountingSmart Search .
Dual-channel intelligence can be enabled at the same time and independent of each other.Supports dual-channel images previewed in the first channel, saving license costs.
Alarm 2 in, 2 out; audio 1 in, 1 out; supports max. 256 G Micro SDcard; built-in MIC.
Built-in IR LED, and the max. illumination distance is 98.43 ft(30m)(IR).Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
This unit is actually two seperate cameras in the same housing. This makes it more compact, and can be installed using less space than two cameras and their mounting boxes would take up. I had one such location, and this unit is working well for that use. The 4-megapixel, (1/2.7") format gives great daylight performance, but only acceptable performance in low-light areas. The supplemental infrared LEDs help at night, so it works OK for my use. The setup GUI requires using an Internet Explorer browser in Windows OS, or the newer Microsoft Edge running in "IE Mode" to access and change the functions of the camera. I have no Microsoft PCs available since I use Macintosh at home. I was able to get by this by setting up a "Virtual Machine" to run Windows on my Mac. It's not a straightforward process to do this, so if you're not a computer person I recommend getting a low end Windows laptop if you plan on messing with these type of cameras. Other cameras being made now seem to support all standard web browsers, maybe the camera manufacturers are finally updating their microprocessors in the units and making this the new standard. But cameras that use previous CPUs seem to be stuck on the Internet Explorer platform for their GUI operations.
